Product code
AS14036
Two-circuit switch 1P (3 contacts) Black
Product in stock

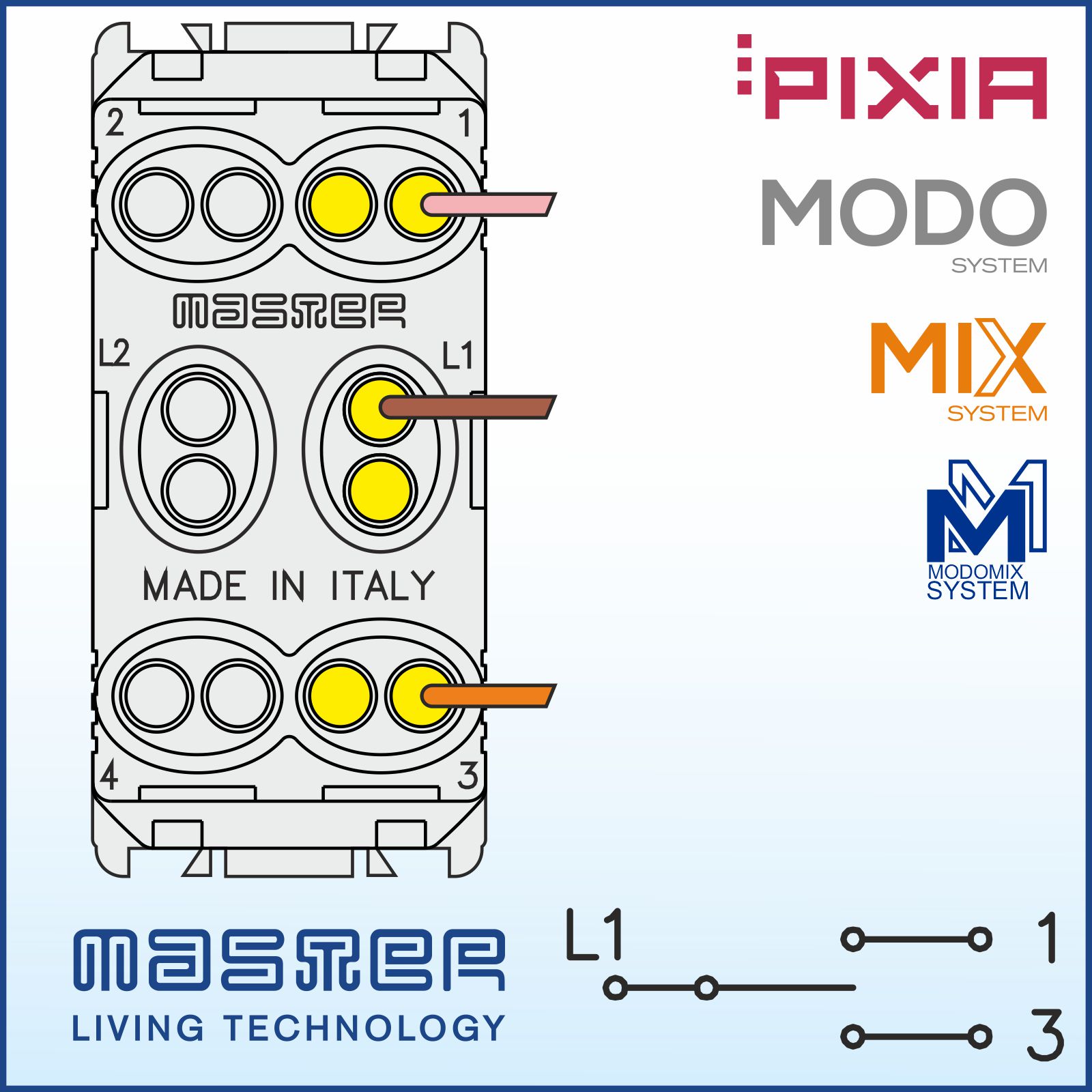

PIXIA 3-position switch (1-0-2) 1P 10AX 250V~ (3 terminals), central OFF position, 1 module, Blackboard. Individually packed in flow-pack.
Technical details
| Color | Blackboard PIXIA |
|---|---|
| Size | 22x42x47 mm |
| Net weight | 30 g |
| ETIM code | EC001036 |
| Combined Nomenclature (CN) | 85365080 |
Marks and standards
Compliant with:
| 2011/65/EU (RoHS II) | Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2) |
| 2012/19/EU (RAEE) | Waste electrical and electronic equipment (WEEE) |
| 2014/35/EU (LVD) | Low Voltage Directive (LVD) |
| CEI EN 60669-1:2018 + EC:2019 | Switches for household and similar fixed electrical installations – Part 1: General requirements |
Packages
| EAN | Qta | Imballo | Dimensioni | Peso lordo |
|---|---|---|---|---|
| 8015919125180 | 1 | Bag | 36 g | |
| 8015919125197 | 25 | Box | 230x150x95 mm | 900 g |
| 8015919125203 | 200 | Carton box | 480x320x215 mm | 7,2 Kg |
