Product code
AS12102
Bipolar switch 20AX 250V complete SandLi
Product in stock

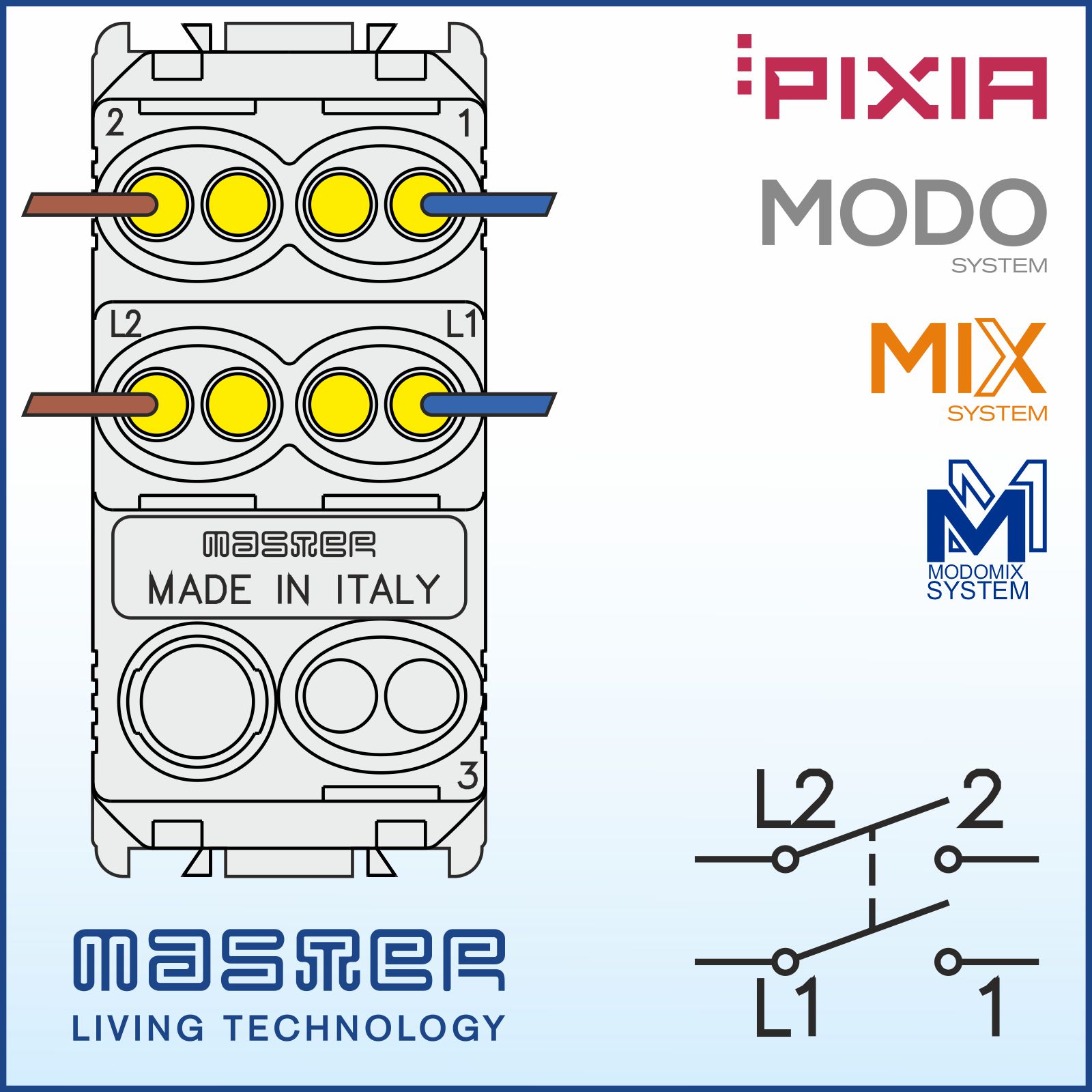

PIXIA 2P 20AX 250V~ switch, 1 module, grey LIGHT SAND, designed for backlighting with transparent gems. Individually packed in flow-pack.
Technical details
| Color | Light Sand PIXIA |
|---|---|
| Size | 22x47x47 mm |
| Net weight | 25 g |
| ETIM code | EC001590 |
| Combined Nomenclature (CN) | 85365080 |
Marks and standards
Compliant with:
| 2011/65/EU (RoHS II) | Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2) |
| 2012/19/EU (RAEE) | Waste electrical and electronic equipment (WEEE) |
| 2014/35/EU (LVD) | Low Voltage Directive (LVD) |
| CEI EN 60669-1:2018 + EC:2019 | Switches for household and similar fixed electrical installations – Part 1: General requirements |
Packages
| EAN | Qta | Imballo | Dimensioni | Peso lordo |
|---|---|---|---|---|
| 8015919129881 | 1 | Bag | 34 g | |
| 8015919129898 | 25 | Box | 230x150x95 mm | 850 g |
| 8015919129904 | 200 | Carton box | 480x320x215 mm | 6,8 Kg |
