Product code
33270-7

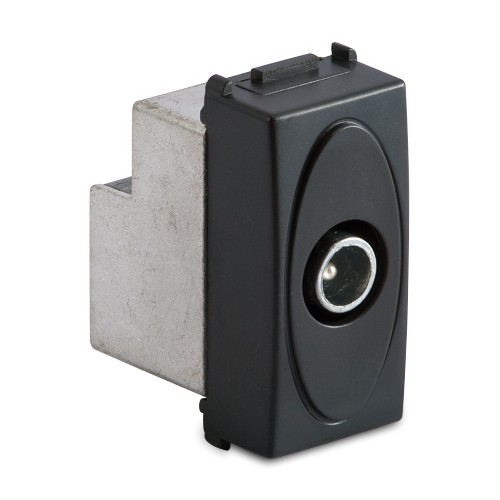

Wide band outlet TV/DTT/SAT inst.grey
Product in stock
TV/SAT coaxial socket outlet, feedthrough, male IEC connector ø 9.5 mm, attenuation 7dB, 1 module, MODO STEEL
Technical details
| Color | MODO STEEL |
|---|---|
| Size | 22x35x47 mm |
| Net weight | 65 g |
| ETIM code | EC000439 |
| Combined Nomenclature (CN) | 85366910 |
Marks and standards
Compliant with:
| 2011/65/EU (RoHS II) | Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2) |
| 2012/19/EU (RAEE) | Waste electrical and electronic equipment (WEEE) |
| 2014/35/EU (LVD) | Low Voltage Directive (LVD) |
| CEI EN 60728-1 | Cable networks for television signals, sound signals and interactive services – Part 1: System performance of forward path |
Packages
| EAN | Qta | Imballo | Dimensioni | Peso lordo |
|---|---|---|---|---|
| 8015919830893 | 1 | No packaging | 65 g | |
| 8015919332700 | 4 | Cardboard box | 90x50x65 mm | 260 g |
| 8015919049219 | 120 | Carton box | 300x260x150 mm | 7,8 Kg |
