Product code 21072.2

16A 250V Pushbutton with Bell symbol

Product in stock

Pulsante MIX NO 1P 16A 250V~ con simbolo Campanello, 2 moduli, bianco, predisposto per retroilluminazione con gemma trasparente.

Technical details

Color MIX white
Size 44x47x47 mm
Net weight 30 g
ETIM code EC000029
Combined Nomenclature (CN) 85365080

Marks and standards

Marchio 1 Marchio 11

Compliant with:

2011/65/EU (RoHS II) Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2)
2012/19/EU (RAEE) Waste electrical and electronic equipment (WEEE)
2014/35/EU (LVD) Low Voltage Directive (LVD)

Packages

EAN Qta Imballo Dimensioni Peso lordo
8015919813735 1 No packaging 38 g
8015919210749 2 Cardboard box 90x50x65 mm 76 g
8015919045761 60 Carton box 300x260x150 mm 2,3 Kg

Documents

Dichiarazione di conformità CE APPARECCHI DI COMANDO MIX NON AUTOMATICI DTC - EN, IT Dichiarazione di conformità CE comandi MIX PDF - EN, IT

Recommended products

Support frame

3 Modules MODO-MIX support with screws 38003 3 Modules MODO-MIX support with screws Product in stock
3 Modules support with frontal insertion 38003-F 3 Modules support with frontal insertion Product in stock
4 Modules suppport w/screws 38004 4 Modules suppport w/screws Product in stock
4 modules support with frontal insertion 38004-F 4 modules support with frontal insertion Product in stock
2+2 Modules support w/screws 38005 2+2 Modules support w/screws Product in stock
7 Modules support w/screws 38007 7 Modules support w/screws Product in stock
7 modules support with frontal insertion 38007-F 7 modules support with frontal insertion Product in stock
3 Modules support w/screws 38008 3 Modules support w/screws Product in stock
MODO/MIX 6+6P. module support 38012 MODO/MIX 6+6P. module support Product in stock
New universal 2 Mod.support w/clips 38020-I New universal 2 Mod.support w/clips Product in stock
Universal 2 mod. support f.squared box 38021 Universal 2 mod. support f.squared box Product in stock
2 and 2.5 modules support for BS system BS28000 2 and 2.5 modules support for BS system Product canceled
5 and 5.5 modules support for BS System BS28002 5 and 5.5 modules support for BS System Product is low

Optional indicator light

230V minilamp with 100mm wires 6085 230V minilamp with 100mm wires Product in stock
127V minilamp with 100mm wires 6085-110 127V minilamp with 100mm wires Product in stock
110-230V mini LED lamp with wires, blue 6085-L 110-230V mini LED lamp with wires, blue Product in stock
110-230V mini led lamp with wires, White 6085-LB 110-230V mini led lamp with wires, White Product in stock

Color variants

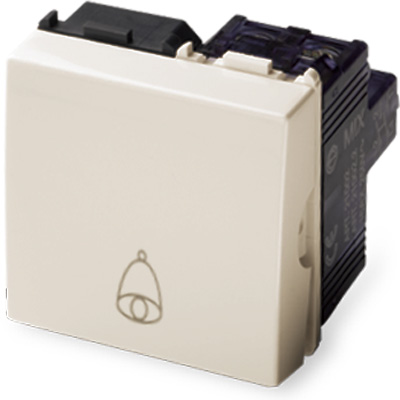

16A 250V Pushbutton with Bell symbol 22072.2 16A 250V Pushbutton with Bell symbol Product on order
