Product code
11063
3Mod key card switch w/support 16A
Product in stock

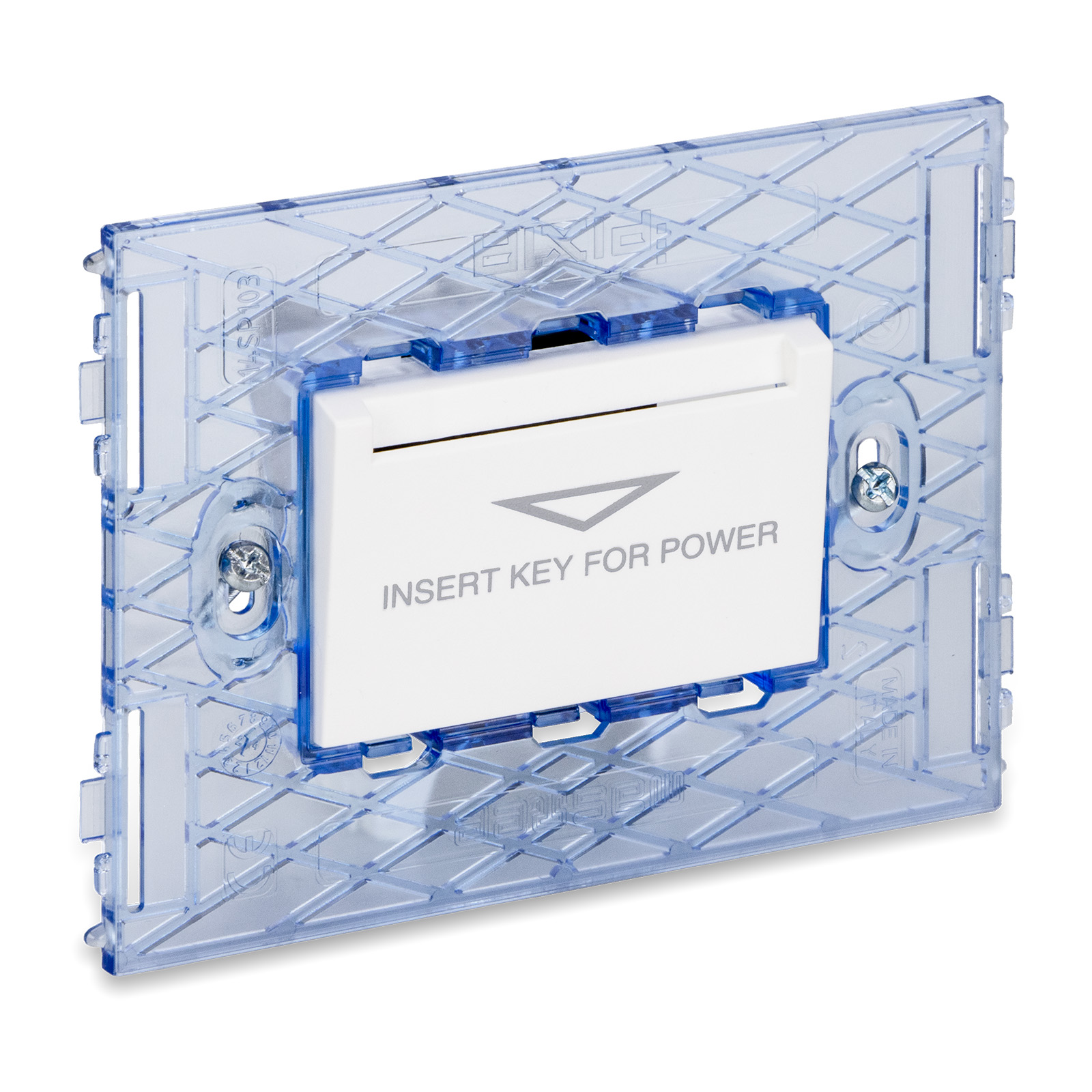

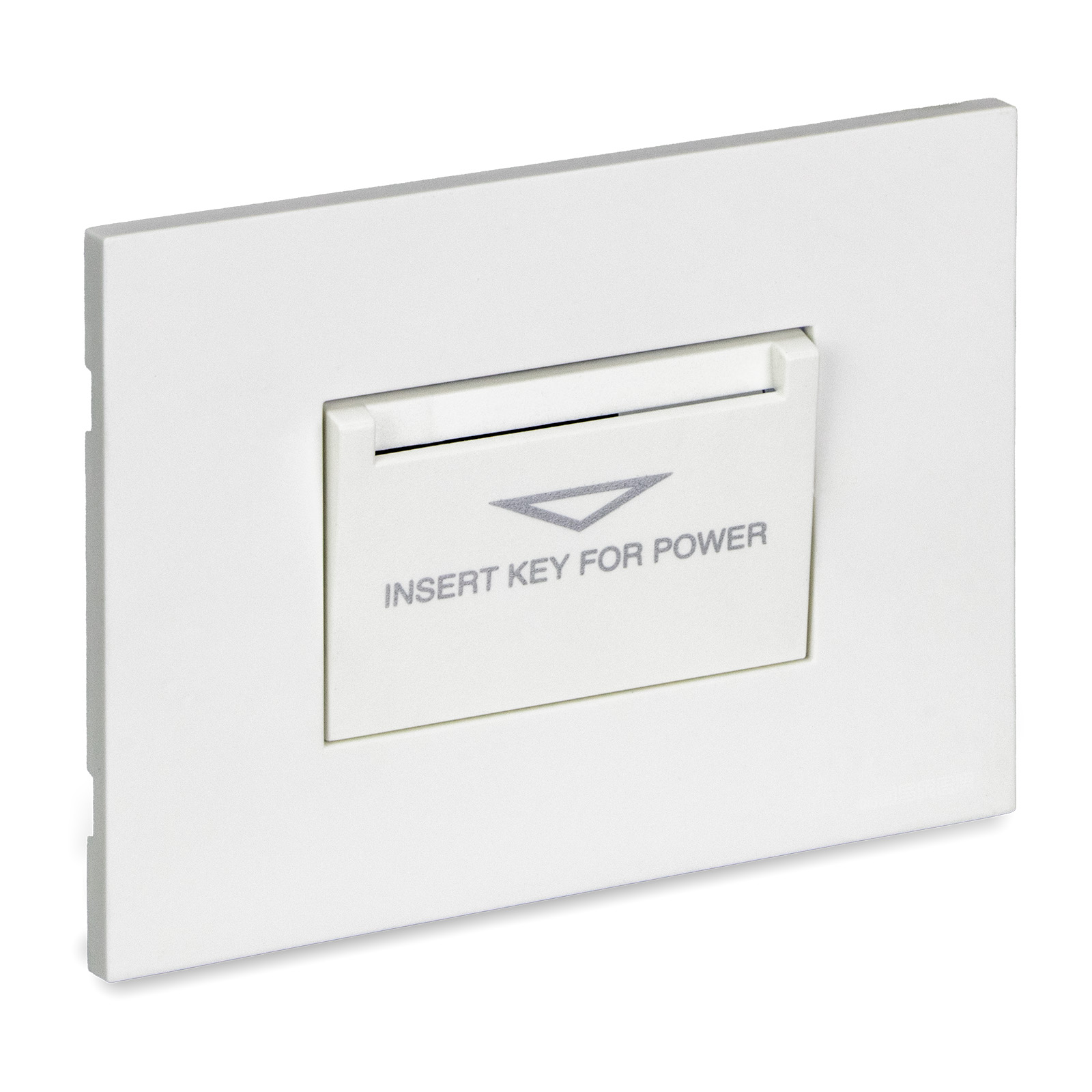

PIXIA badge switch with vertical pocket, 3 modules, 2P 16A 250V~ with support. SnowWhite. To be completed with 3-module Pixia plate
Technical details
| Color | Snow White PIXIA |
|---|---|
| Voltage | 230V |
| Net weight | 50 g |
| ETIM code | EC001590 |
| Combined Nomenclature (CN) | 85365080 |
Marks and standards
Compliant with:
| 2011/65/EU (RoHS II) | Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2) |
| 2012/19/EU (RAEE) | Waste electrical and electronic equipment (WEEE) |
| 2014/35/EU (LVD) | Low Voltage Directive (LVD) |
| CEI EN 60669-1:2018 + EC:2019 | Switches for household and similar fixed electrical installations – Part 1: General requirements |
Packages
| EAN | Qta | Imballo | Dimensioni | Peso lordo |
|---|---|---|---|---|
| 8015919113262 | 1 | Bag | 55 g | |
| 8015919126859 | 6 | Box | 150x140x115 mm | 330 g |
| 8015919126866 | 24 | Carton box | 300x260x150 mm | 1,3 Kg |
